The Tibial Cannulated Drill Bit is an orthopedic surgical instrument designed for tibial tunnel preparation in compatible ACL/PCL reconstruction procedures. It is part of the A602004 series of tibial cannulated drill bits and is available in multiple diameters to accommodate different surgical requirements.
Each drill bit has a 180 mm length, while the available working diameters range from Φ4.0 mm to Φ12.0 mm. The series includes 15 configurations, allowing the appropriate diameter to be selected according to the surgical technique and required tunnel size.
The cannulated design allows the drill bit to be used with a compatible guide wire during the drilling process. This configuration can support controlled positioning along the established drilling pathway and is commonly incorporated into orthopedic ligament reconstruction instrument systems.

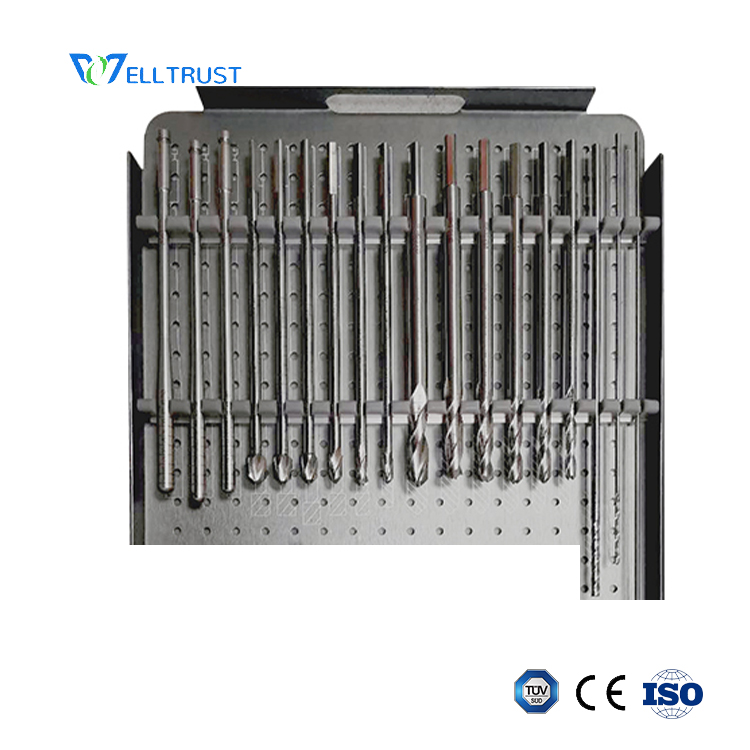

The A602004 series includes the following sizes: 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0, 7.5, 8.0, 8.5, 9.0, 9.5, 10.0, 11.0 and 12.0 mm. The range provides multiple options within one product series for different tibial tunnel preparation requirements.

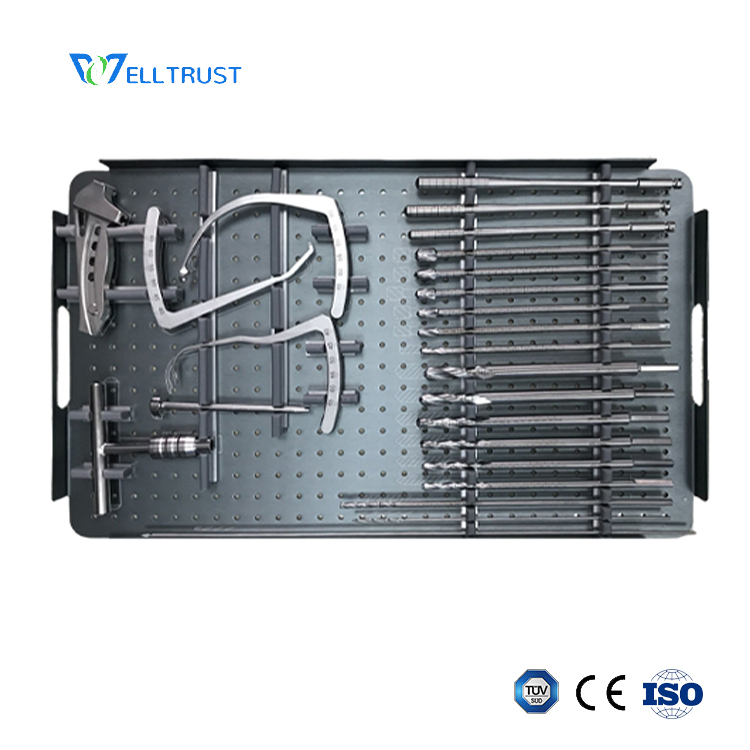

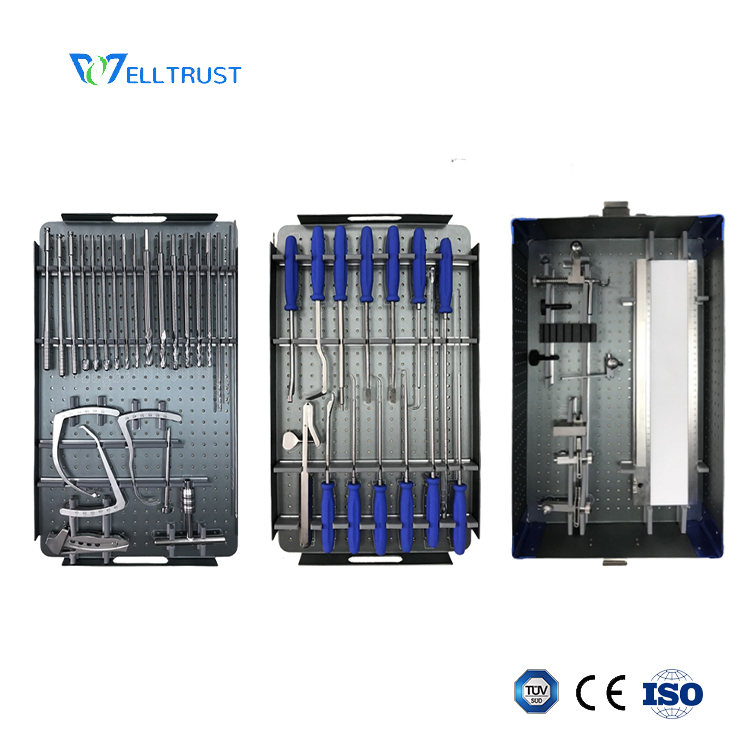

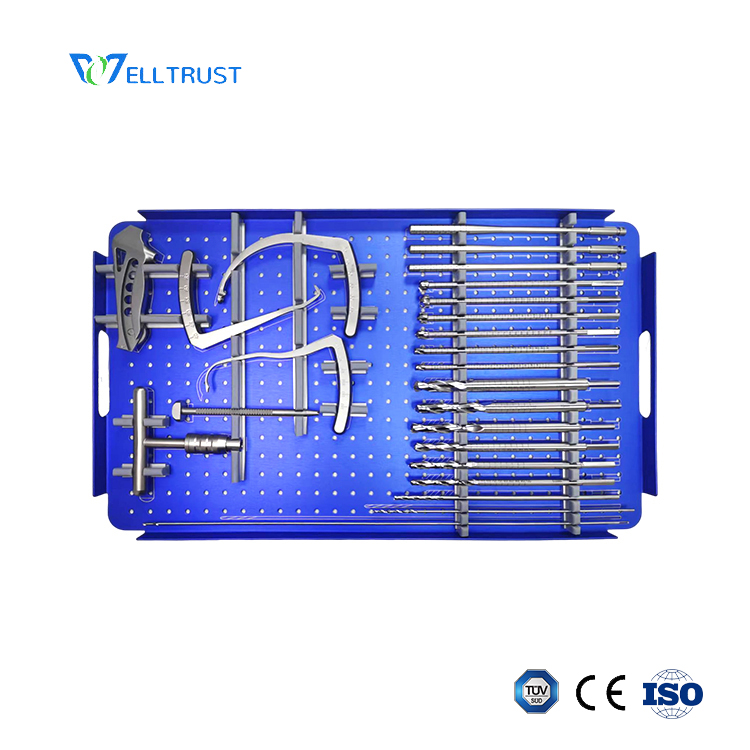

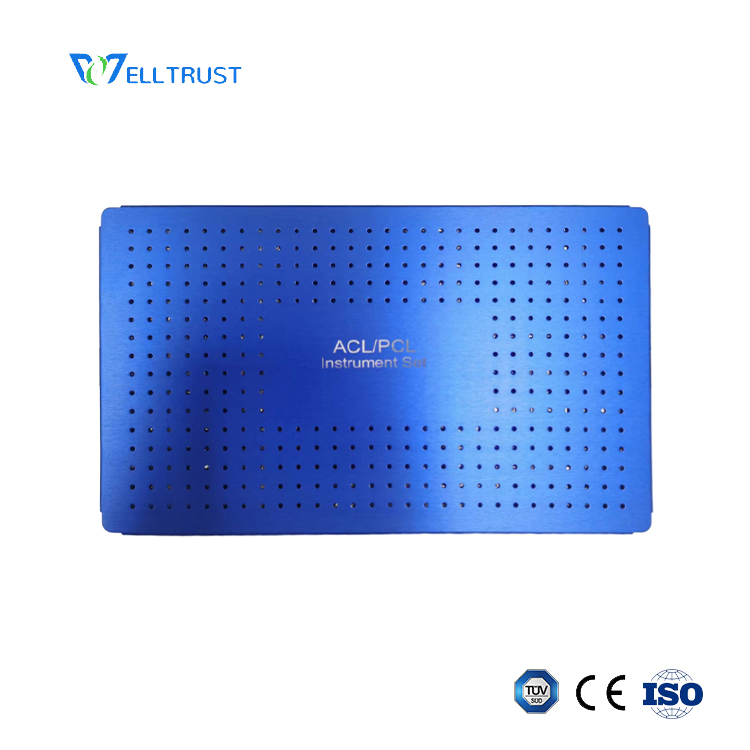

The Tibial Cannulated Drill Bit can be supplied as an individual instrument or incorporated into an ACL/PCL reconstruction instrument set, together with femoral cannulated drill bits, femoral guides, ligament measurers, cruciate ligament localizers and other compatible instruments. ACL/PCL instrument set listings also identify the A602004 series as tibial cannulated drill bits.
Product Series: A602004
Length: 180 mm
Diameter Range: Φ4.0–Φ12.0 mm
The specific drill diameter and compatible guide system should be selected according to the surgical technique and instrument system requirements.
