The Open Ligament (Tendon) Measurer is an orthopedic surgical instrument designed for measuring ligament or tendon graft diameter during compatible knee reconstruction procedures. It is particularly suited for use as part of an ACL/PCL reconstruction instrument set, where accurate graft sizing is an important part of surgical preparation.

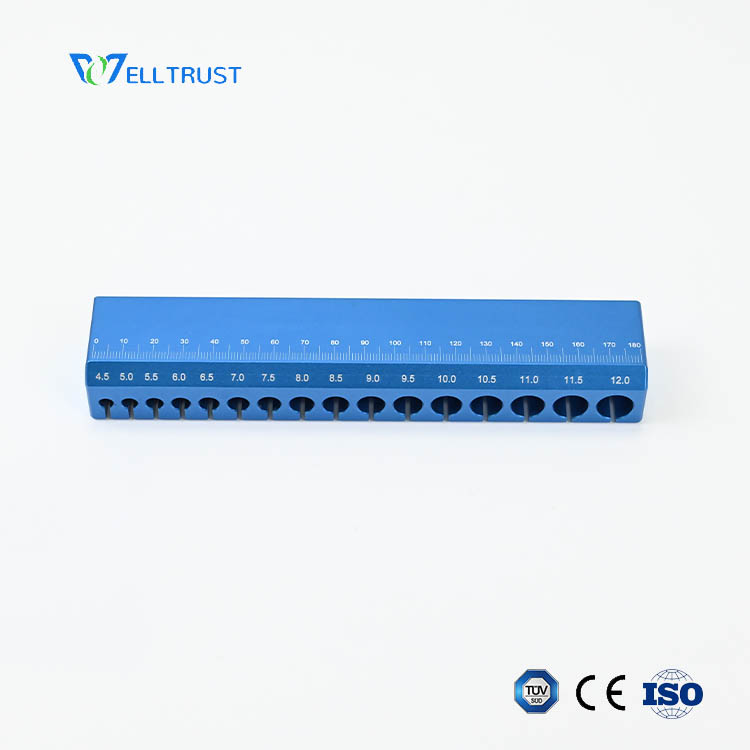

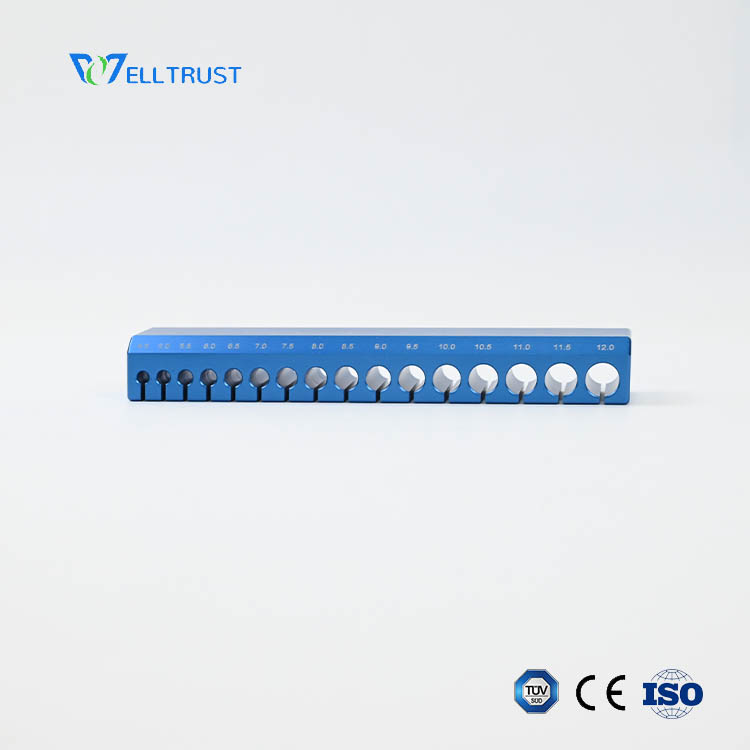

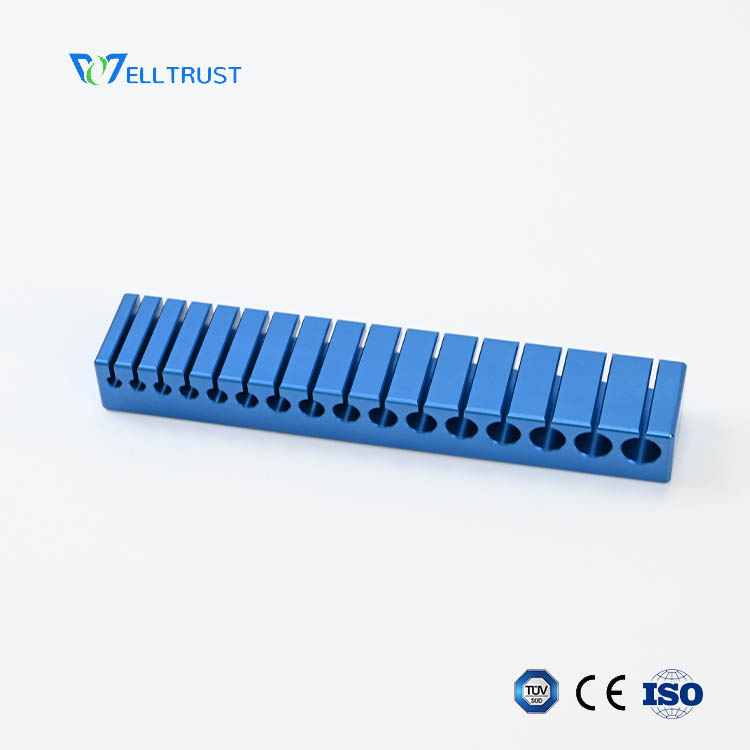

The A602002 Open Ligament (Tendon) Measurer features an open measuring design with multiple graduated openings covering a measurement range of Φ4.0 to Φ12 mm. The open structure allows the graft or tendon to be positioned through the corresponding measuring opening for size assessment.
The instrument has a 190 mm length and is designed with a series of clearly arranged measurement positions. The graduated scale provides a straightforward way to identify the approximate diameter of the graft or tendon according to the selected opening.
Compared with a closed tubular measuring instrument, the open configuration provides direct access to the measuring openings and can be incorporated into different surgical workflows according to the surgeon's preferred technique.

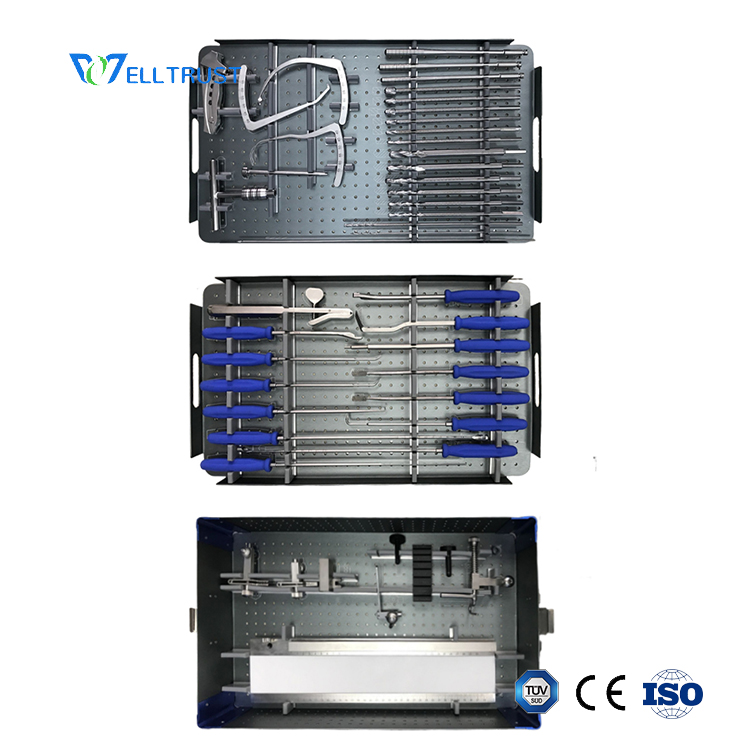

The A602002 can be used together with other instruments commonly found in ACL/PCL reconstruction sets, including ligament localizers, femoral guides, tibial drill bits, tendon removal instruments, soft tissue clips and other knee arthroscopy instruments. Similar ACL/PCL instrument sets list A602002 as the ligament/tendon measurer within the overall reconstruction system.
With its Φ4.0–Φ12 mm measurement range, the instrument provides multiple sizing options within one device, making it suitable for graft and tendon measurement requirements encountered during compatible ligament reconstruction procedures.
Model: A602002
Length: 190 mm
Measurement Range: Φ4.0–Φ12 mm
The specific instrument configuration and intended use should be confirmed according to the surgical technique and ACL/PCL instrument set requirements.
