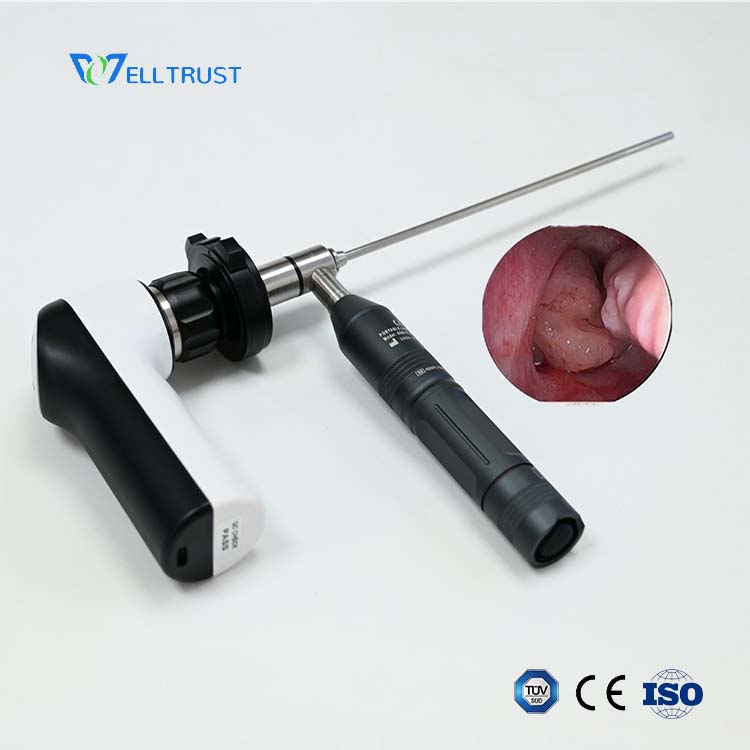

AGM W100 Wireless Endoscope Camera System for Arthroscopy and Image Documentation
The AGM W100 is a wireless endoscope camera system developed for connection to a compatible endoscope during clinical endoscopic examination or endoscopic surgical observation. In an arthroscopy environment, it provides a flexible image-acquisition option for displaying, freezing, photographing and recording endoscopic views without relying on a direct video cable between the camera head and the viewing device.
The system provides 1920 x 1080 video output and uses a 2 MP image sensor. Its camera head transmits the processed image signal through a wireless network to a computer, mobile phone or tablet. The supplied software supports image display and procedure documentation, while the desktop workflow includes image buffering and electronic medical record functions described in the user manual.
For sports medicine and arthroscopy teams, the AGM W100 can be integrated into selected endoscopic imaging workflows where a compatible endoscope, coupler and light source are available. The focus ring can be adjusted after the optical components are connected, and manual white balance can be performed against a white object before routine observation. The actual coupler and endoscope compatibility must be confirmed for the planned configuration.
The camera head supports photo capture, video recording and image freeze. The software can also provide electronic medical record functions, image storage and printing functions. The master-device and slave-device connection modes allow image reception by more than one connected device; the manual recommends that the number of connections does not exceed two for performance considerations.

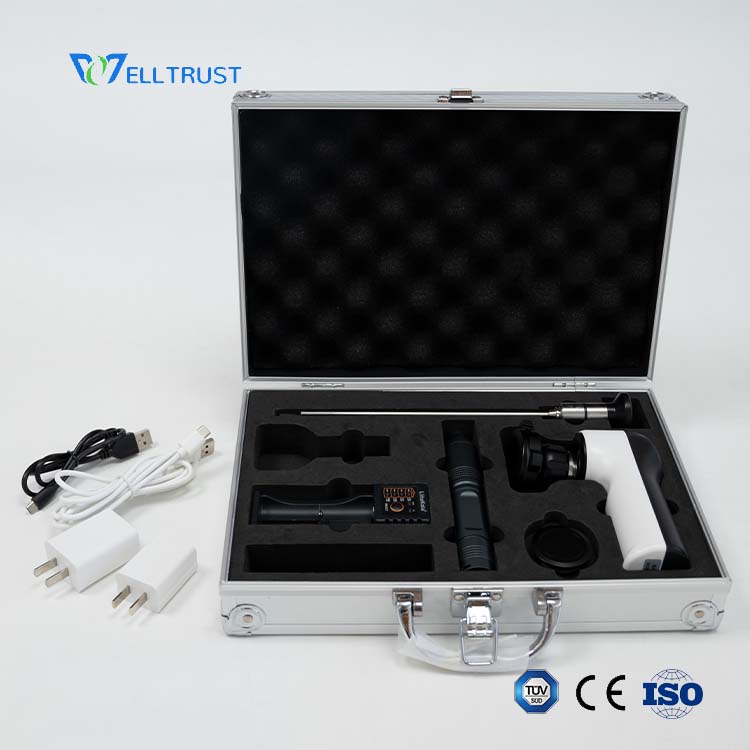

AGM W100 has a stated IPX8 rating, a 150 g product weight, a 2800 mAh battery and approximately 4 hours of battery life. It uses a USB Type-C connection and operates at DC 5 V. The complete system includes the wireless camera head and associated system components; the supplied coupler option, power accessories and software package should be confirmed for each order.
WTT Arthroscopy supplies arthroscopy implants, arthroscopy equipment and arthroscopy instruments for professional sports medicine customers. Our service can include product selection, configuration discussion, technical communication, OEM/ODM coordination where applicable, and after-sales support such as technical training, maintenance communication and response support. Contact our team to confirm the compatible endoscope interface, coupler configuration and intended operating-room workflow before ordering.
Technical specifications
1. Is AGM W100 a complete arthroscope?
No. AGM W100 is a wireless endoscope camera system that connects to a compatible endoscope. The endoscope, coupler and light-source configuration should be confirmed separately.
2. What image resolution does AGM W100 provide?
The user manual lists 1920 x 1080 video output resolution and a 2 MP image sensor.
3. Which documentation functions are available?
The system supports photo capture, video recording, image freeze and manual white balance. The Windows software also describes image buffering, medical-record entry, storage and printing functions.
4. Can the system connect to more than one device?
The manual describes master and slave device modes and supports multiple connections, but recommends that the number of connections does not exceed two to help maintain performance.
5. Can WTT Arthroscopy help confirm the configuration?
Yes. Our team can discuss the intended arthroscopy workflow, compatible endoscope interface, coupler option, software platform and supply configuration before quotation.
6. What should users check before clinical use?
Users should confirm the camera, coupler, endoscope and light source are correctly connected, adjust focus, perform white balance when required, check the wireless connection and follow the safety instructions in the current manual.
